Caller Authentication with CIBA - Guides & Tools

Caller Authentication integrates national eID verification into your call center workflow. Your system triggers an authentication request to a specific user during a phone call, and the user approves it on their mobile device. This creates a secure, phishing-resistant way to confirm who you are talking to during customer service interactions.

The CIBA flow

Caller Authentication is built on the Client-Initiated Backchannel Authentication (CIBA) flow.

With CIBA, the client application provides a hint (e.g. the user's SSN) that triggers an authentication request to the user's device. The user can then approve the request and complete the authentication process on their device.

The client application communicates directly with Idura Verify through a backend channel, without browser redirects. This allows authentication to be initiated on one device and completed on another, making CIBA a perfect fit for use cases where the end-user doesn’t operate the client application—such as a call center agent verifying a caller’s identity.

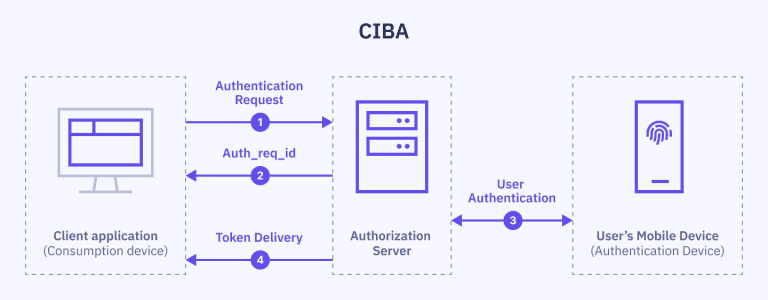

Authentication process with CIBA

User connection: A user is connected to, or waiting to speak with, a call center agent.
Start authentication: The client application sends a CIBA authentication request to the backchannel authentication endpoint of the OpenID Provider’s Authorization Server. This request includes client credentials, scopes, and a valid identifier of a user to be authenticated (e.g. SSN).
Receive authorization request identifier: Authorization Server responds with a unique auth_req_id that will be used to track the authentication process.
User authentication: Authorization Server uses the provided user identifier to locate and prompt the user to authenticate on their authentication device.
Token issuance & delivery: Once the user successfully authenticates, Authorization Server creates an ID Token and Access Token.

Implementing Caller Authentication with CIBA

The CIBA flow is only available to traditional server-based web applications (confidential clients) and requires client validation for authentication requests. We'll use private key JWTs for authentication in the example below. An alternative (less secure) approach is to use client_secret for authentication.

1. Start the authentication request

Make an HTTP POST request to the /ciba/bc-authorize endpoint:

# Replace `YOUR_DOMAIN.idura.broker` with your Idura domain
# Replace `$client_assertion` with your JWT assertion
# Replace `SSN` with a valid SSN

HTTP POST https://YOUR_DOMAIN.idura.broker/ciba/bc-authorize
Content-Type: application/x-www-form-urlencoded

scope=openid
&login_hint=sub:ssn:SSN
&acr_values=ACR_VALUE
&client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer
&client_assertion=$client_assertion
# Add eID-specific parameters here

eID Provider Required Parameters Notes

eID Provider	Required Parameters	Notes
Swedish BankID	`callInitiator=RP` or `user` `binding_message=BINDING_MESSAGE` `acr_values=urn:grn:authn:se:bankid`	`callInitiator` must be either `RP`("Relying Party", e.g. a customer service agent) or `user`, depending on who initiated the call. The `binding_message` value will be shown to the end user in the BankID app.
Norwegian BankID	`acr_values=urn:grn:authn:no:bankid`	Do not include a `binding_message`: the BankID app handles this internally.

Swedish BankID

callInitiator=RP or user

binding_message=BINDING_MESSAGE

acr_values=urn:grn:authn:se:bankid

callInitiator must be either RP("Relying Party", e.g. a customer service agent) or user, depending on who initiated the call.

The binding_message value will be shown to the end user in the BankID app.

Norwegian BankID acr_values=urn:grn:authn:no:bankid Do not include a binding_message: the BankID app handles this internally.

2. Successful response

The response will be slightly different depending on the eID provider.

Note: If the interval value is returned in response, the client must use it as a polling interval. Otherwise, the client must default to a 5 second polling interval.

Swedish BankID:

{
  "auth_req_id" : "3857f8ff-21b9-48ae-a732-a3bd8128a7ae",
  "expires_in" : 120
  "interval" : 3, // optional
}

The interval value can be included if the server specifies a polling interval.

Norwegian BankID:

{
  "auth_req_id" : "3857f8ff-21b9-48ae-a732-a3bd8128a7ae",
  "expires_in" : 900,
  "interval" : 3,
  "bindingMessage" : "Frekk julekos"
}

eID Provider	Parameters	Notes
Norwegian BankID	`bindingMessage`	The BankID app displays a word pair to the user. Your IVR or call center agent must communicate the word pair provided in the `bindingMessage` to the user, so the user can choose it in the app.

3. Poll the token endpoint

After receiving auth_req_id, poll the token endpoint (/oauth2/token) to get a response with an ID token.

# Replace `AUTH_REQ_ID` with the id returned by authentication response
# Replace `$client_assertion` with your JWT assertion

HTTP POST https://YOUR_DOMAIN.idura.broker/oauth2/token
Content-Type: application/x-www-form-urlencoded

auth_req_id=AUTH_REQ_ID
&grant_type=urn:openid:params:grant-type:ciba
&client_assertion_type=urn:ietf:params:oauth:client-assertion-type:jwt-bearer
&client_assertion=$client_assertion

Polling Frequency: The authentication process requires interacting multiple times with the end-user, so the identification process may take some time.
Consequently, the token endpoint should be polled every 5 seconds OR, if the interval value was returned as part of a successful authentication response, the client must respect it.

Token Delivery Modes: CIBA allows three token delivery methods: Poll, Ping and Push. Idura Verify only supports the Poll mode at the moment.

4. Polling results

On successful user identification, a token response is returned:

{
  token_type: 'Bearer',
  expires_in: '120',
  id_token: 'eyJ0eXAiOiJKV1QiLCJhbGciOiJSUzI1NiIsImtpZCI6IjgyN0Q5QTNFOTg2MTY0OTVBQzZGRTE3MUFFNkRBM0IzQ0ExNDE5MjEifQ.eyJpc3MiOiJodHRwczovL25hdGFsaWEtZGV2LXRlc3QuY3JpaXB0by5pbyIsImF1ZCI6InVybjpjaWJhIiwiaWRlbnRpdHlzY2hlbWUiOiJzZWJhbmtpZCIsImF1dGhlbnRpY2F0aW9udHlwZSI6InVybjpncm46YXV0aG46c2U6YmFua2lkIiwiYXV0aGVudGljYXRpb25tZXRob2QiOiJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6YWM6Y2xhc3NlczpTb2Z0d2FyZVBLSSIsImF1dGhlbnRpY2F0aW9uaW5zdGFudCI6IjIwMjQtMDUtMjJUMTA6NDE6NDEuMzYxWiIsIm5hbWVpZGVudGlmaWVyIjoiYmI5YzIzNjRkZmFlNDRmM2JjZmQ5OTkwNTNkOTRmOWUiLCJzdWIiOiJ7YmI5YzIzNjQtZGZhZS00NGYzLWJjZmQtOTk5MDUzZDk0ZjllfSIsInNlc3Npb25pbmRleCI6ImI2NWYxMWI2LWViYTctNDg4Mi05MDBhLTVmMmQ5M2EzOGRiYSIsInNzbiI6IjE5NjgwMjAyMDU3NSIsIm5hbWUiOiJUZXJuZSBQYXVsc2VuIiwiZ2l2ZW5uYW1lIjoiVGVybmUiLCJnaXZlbl9uYW1lIjoiVGVybmUiLCJzdXJuYW1lIjoiUGF1bHNlbiIsImZhbWlseV9uYW1lIjoiUGF1bHNlbiIsImlwYWRkcmVzcyI6IjE4NS4xNTcuMTM0LjEzNCIsImNvdW50cnkiOiJTRSIsImlhdCI6MTcxNjM3NDUwMSwibmJmIjoxNzE2Mzc0NTAxLCJleHAiOjE3MTYzNzU3MDF9.RVQnlukfoH597uXzE1Gays5DElGzAr8xgOmi7ZWppaL3QPGhV4vK2o6qLhxXg_-FKG9xCwHR6gEhnNzWA3W3B6Q2zJeQTYh9okUvTmmhAFIyDL7lEtfWVVKUKvauDisYVZDjAxJQS_1zbgPEi5I-UJ6_kvMGH-wC13MAD2bZGTGR2dR-ZevBUn7plOt0PKXrIZD3vwxDfebTMPQqX_9SNT5F7GLjCcpeVK-T5LOgmUMFcTAbHvNyklqP5ymRHsZLDw_ib4I7ZqODhR-3uISWo1NvG4Y84iBcqv50WRNlmMUm004LfPw1flM5DNsVyUWCqYW8m7eBEwLp5va-6OQG4w',
  access_token: 'cf1ce646-7fbe-4740-9c56-fe3f0891f6c6'
}

Continue polling until the token endpoint returns a token response or an "access_denied" error. While the authentication process is ongoing, the provider will always return "error": "authorization_pending".

The exact response format for intermediate authentication states depends on the eID provider.

Swedish BankID

Description	Response
The user has not yet interacted with the BankID app.	`{ "error": "authorization_pending", "error_description": "awaiting first user interaction" }`
The user has been presented with a message requesting to confirm if they can acknowledge a request for identification.	`{ "error": "authorization_pending", "error_description": "awaiting user request acknowledgement" }`
The user has acknowledged the request, but has not yet identified themselves.	`{ "error": "authorization_pending", "error_description": "awaiting user identification" }`
The user did not acknowledge that the identification request was warranted or canceled the request before identification was performed.	`{ "error": "access_denied", "error_description": "user declined" }`

Norwegian BankID

Description	Response
The user has not chosen the word pair yet.	`{ "error": "authorization_pending", "error_description": "User has not yet granted authorization" }`
The user canceled or selected the wrong words.	`{ "error": "access_denied", "error_description": "user declined" }`

Caller Authentication with Swedish BankID

BankID in telephone calls facilitates user authentication during a phone call.

How authentication works

SSN input: The customer service agent enters the user's personal identification number (SSN) in their system, or the user is prompted to input their SSN via an automated PBX system.
Authentication request: The customer service agent (if applicable) indicates whether the call was initiated by the user or the company they represent, then initiates an authentication request.

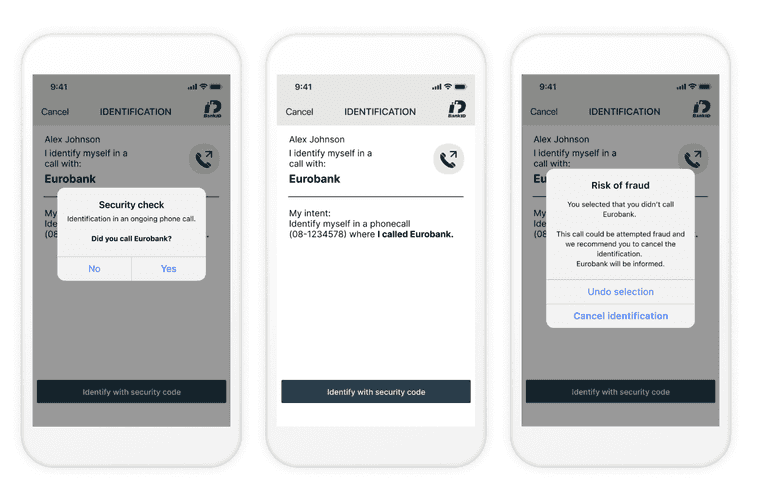

Security check: The Swedish BankID app displays a phone icon and the company’s name, prompting the user with a Yes/No security check question.
User response: If the user selects Yes, they can proceed by identifying themselves with a security code or biometrics. If the user selects No, they can cancel the identification process.

The example above demonstrates what it looks like when the customer is calling the service. A different security check is shown when the service is calling the customer.

Caller Authentication with Norwegian BankID

Caller Authentication enables identity verification during a live call or while the user is waiting in the call queue. The user authenticates in the BankID app using biometrics.

This product is currently in BETA. If you're interested in using it, please contact us at support@idura.eu.
